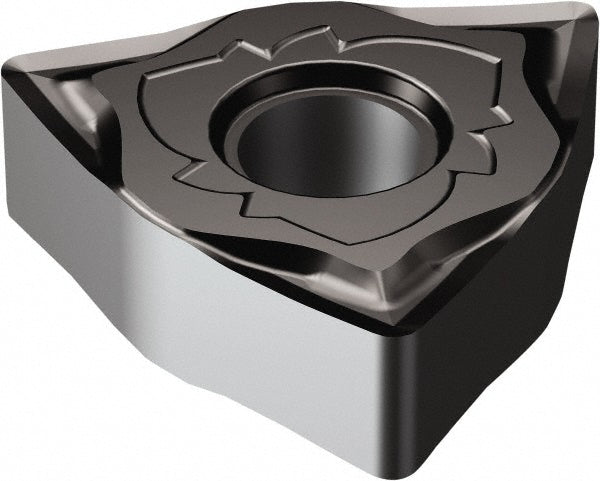

WNGG 08 04 02-SGF 1105 Carbide Insert, Grade 1105, TiAlN2 - Sandvik Coromant 6851288
MFR# 6851288ISO/ANSI# WNGG 08 04 02-SGF 1105Series T-Max P
$28.53List $36.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
Grade1105
MaterialCarbide
CoatingTiAlN2
Description
The Sandvik Coromant 6851288 is a WNGG 08 04 02-SGF 1105 carbide indexable insert, grade 1105, TiAlN2 coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiAlN2
Coating processPVD
Corner radius0.0078
Cutting edge styleSharp
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeTrigon
Insert size code43.5
Insert styleWNGG
Insert thickness in3/16
Iso codeWNGG 08 04 02-SGF 1105
Manufacturer grade1105
Maximum depth of cut (mm)7.48
Relief angle0
Tolerance codeG
