Sandvik Coromant

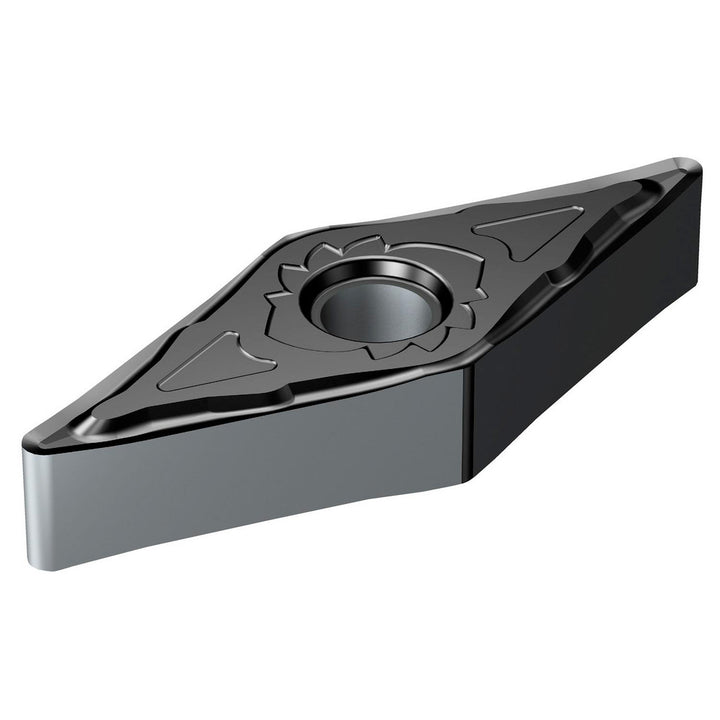

VNGG160401SGF1105 Carbide Insert, Grade 1105, TiAlN2 - Sandvik Coromant 6851303
MFR# 6851303ISO/ANSI# VNGG160401SGF1105Series T-Max P
$46.16List $59.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1105
MaterialCarbide
CoatingTiAlN2
Description
The Sandvik Coromant 6851303 is a VNGG160401SGF1105 carbide indexable insert, grade 1105, TiAlN2 coated. Suited for stainless steel.
Specifications
Chip breakerSGF
Clearance codeN
Coating finishTiAlN2
Coating processPVD
Corner radius0.0039
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6539
Insert materialCarbide
Insert shapeDiamond
Insert size code33.3
Insert styleVNGG
Insert thickness in3/16
Iso codeVNGG160401SGF1105
Length range0.6500 - 0.7000
Manufacturers catalog number6851303
Manufacturer grade1105
Maximum depth of cut0.6402
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
