Sandvik Coromant

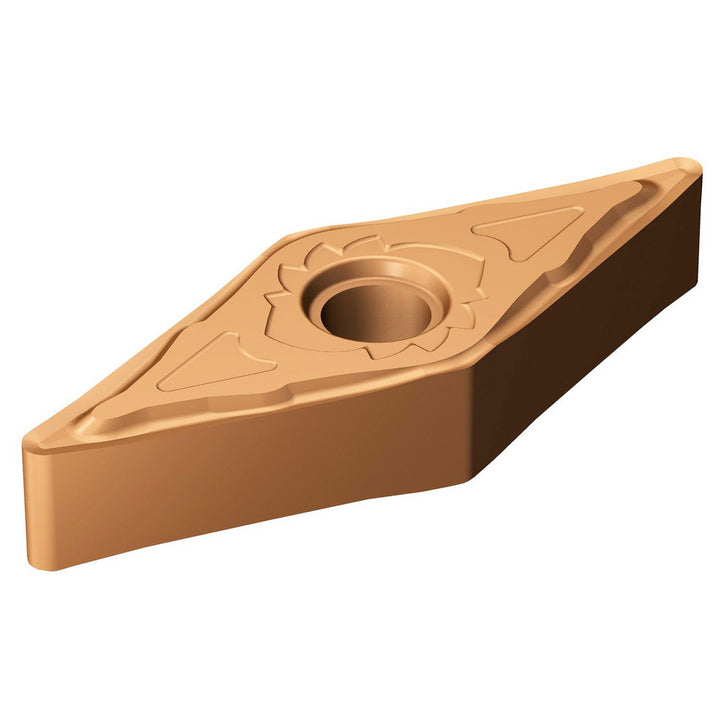

VNGG 16 04 02-SGF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 6851310
MFR# 6851310ISO/ANSI# VNGG 16 04 02-SGF 1125Series T-Max P
$46.16List $59.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 6851310 is a VNGG 16 04 02-SGF 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerSGF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0078
Cutting edge styleSharp
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeDiamond
Insert size code33.5
Insert styleVNGG
Insert thickness in3/16
Iso codeVNGG 16 04 02-SGF 1125
Manufacturer grade1125
Maximum depth of cut (mm)16.05
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
