Sandvik Coromant

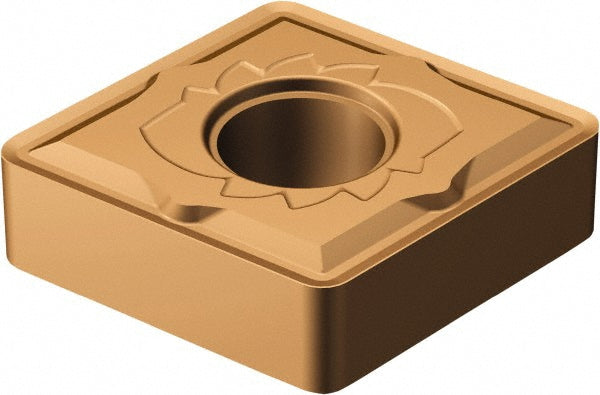

CNMG 19 06 08-SM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 6851317
MFR# 6851317ISO/ANSI# CNMG 19 06 08-SM 1125Series T-Max P
$43.03List $55.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 6851317 is a CNMG 19 06 08-SM 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerSM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleRounded
Hole diameter0.3120
Included angle80
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeDiamond
Insert size code642
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 19 06 08-SM 1125
Manufacturer grade1125
Maximum depth of cut (mm)18.54
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
