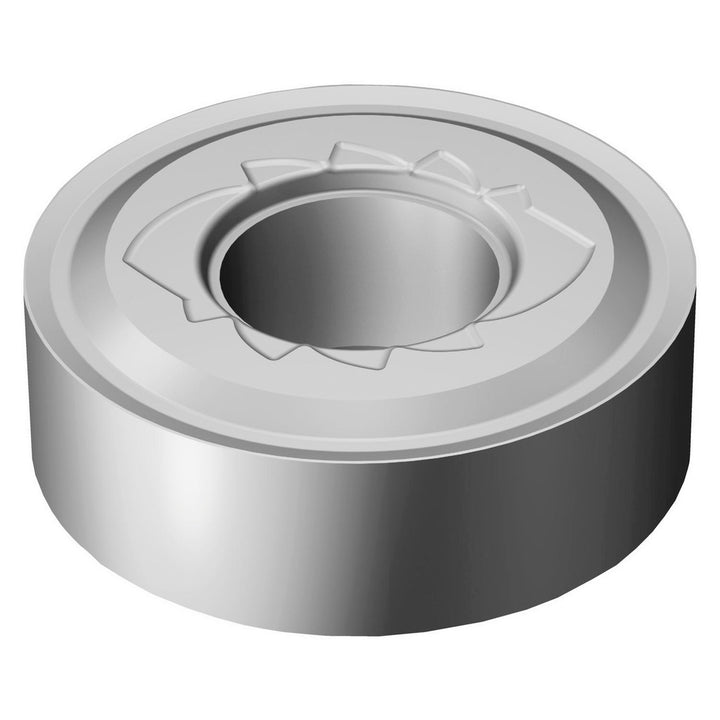

RNMG 19 06 00-SM H13A Carbide Insert, Grade H13A - Sandvik Coromant 6851327

Sandvik Coromant

RNMG 19 06 00-SM H13A Carbide Insert, Grade H13A - Sandvik Coromant 6851327

MFR# 6851327ISO/ANSI# RNMG190600Series T-Max P

$27.62List $35.42 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeR - Round
GradeH13A
MaterialCarbide

Description

The Sandvik Coromant 6851327 is a RNMG 19 06 00-SM H13A carbide indexable insert, grade H13A. Suited for stainless steel.

Specifications

Ansi insert codeRNMG64
Ansi size code64
Chip breakerSM
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Cutting edge styleRounded
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and T
Hole diameter0.3120
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeR - Round
Insert size code64
Insert styleRNMG
Insert thickness in1/4
Iso codeRNMG 19 06 00-SM H13A
Iso insert codeRNMG190600
Iso size code190600
Manufacturer gradeH13A
Number of cutting edges8
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
