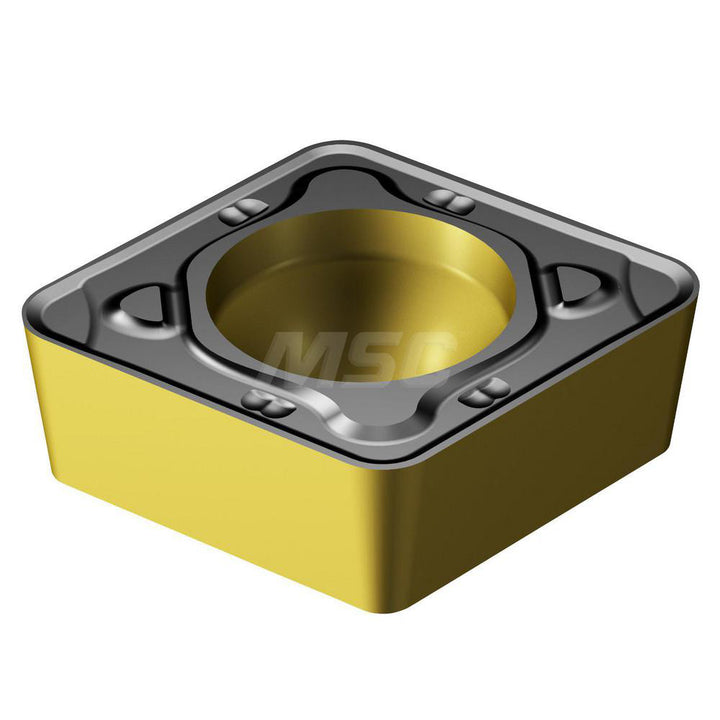

CCMT 06 02 08-KR 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868234

Sandvik Coromant

CCMT 06 02 08-KR 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868234

MFR# 6868234ISO/ANSI# CCMT060208Series CoroTurn 107

$14.32List $18.36 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
Grade3225
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 6868234 is a CCMT 06 02 08-KR 3225 carbide indexable insert, grade 3225, TiCN coated. Suited for cast iron.

Specifications

Ansi insert codeCCMT21.52
Ansi size code21.52
Chip breakerKR
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleRounded
Grade characteristicsCast Iron (K) - High Wear-Resistance to High Toughness
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.52
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT 06 02 08-KR 3225
Iso insert codeCCMT060208
Iso size code060208
Manufacturer grade3225
Maximum depth of cut (mm)5.65
Number of cutting edges2
Primary workpiece materialCast Iron
Relief angle7
Side clearancePositive
Tolerance codeM
Wiper edgeNo
