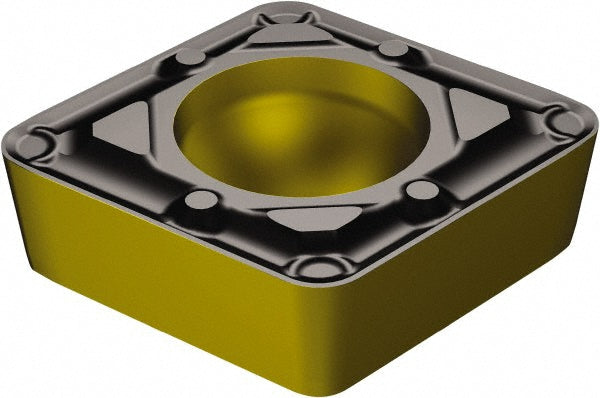

CCMT 09 T3 04-WF 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868238
MFR# 6868238ISO/ANSI# CCMT09T304Series CoroTurn 107
$19.12List $24.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
Grade3225
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 6868238 is a CCMT 09 T3 04-WF 3225 carbide indexable insert, grade 3225, TiCN coated.
Specifications
Ansi insert codeCCMT32.51
Ansi size code32.51
Chip breakerWF
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleRounded
Grade characteristicsCast Iron (K) - High Wear-Resistance to High Toughness
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 09 T3 04-WF 3225
Iso insert codeCCMT09T304
Iso size code09T304
Lead angle95
Manufacturer grade3225
Maximum depth of cut (mm)9.27
Relief angle7
Side clearancePositive
Tolerance codeM
