Sandvik Coromant

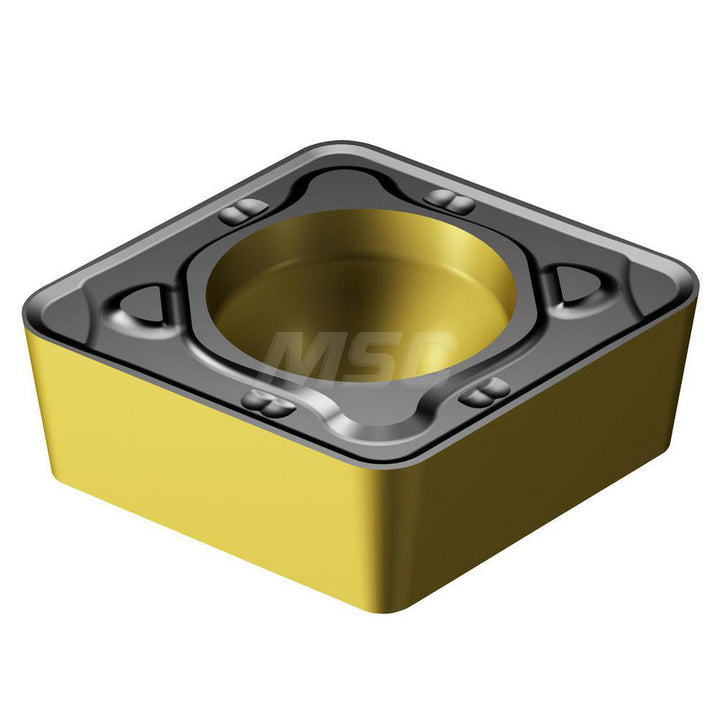

CCMT 09 T3 08-KR 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868242
MFR# 6868242ISO/ANSI# CCMT 09 T3 08-KR 3225Series CoroTurn 107
$15.40List $19.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade3225
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 6868242 is a CCMT 09 T3 08-KR 3225 carbide indexable insert, grade 3225, TiCN coated. Suited for cast iron.
Specifications
Chip breakerKR
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleRounded
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 09 T3 08-KR 3225
Manufacturer grade3225
Maximum depth of cut (mm)8.87
Number of cutting edges2
Primary workpiece materialCast Iron
Relief angle7
Tolerance codeM
Wiper edgeNo
