Sandvik Coromant

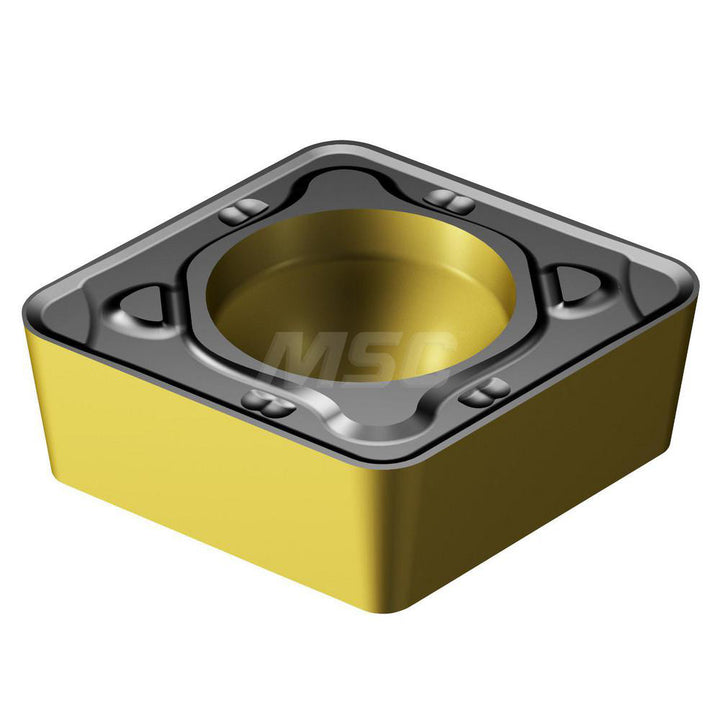

CCMT 12 04 12-KR 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868251
MFR# 6868251ISO/ANSI# CCMT 12 04 12-KR 3225Series CoroTurn 107
$23.20List $29.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade3225
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 6868251 is a CCMT 12 04 12-KR 3225 carbide indexable insert, grade 3225, TiCN coated. Suited for cast iron.
Specifications
Chip breakerKR
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleRounded
Hole diameter0.2165
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code433
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT 12 04 12-KR 3225
Manufacturer grade3225
Maximum depth of cut (mm)11.70
Number of cutting edges2
Primary workpiece materialCast Iron
Relief angle7
Tolerance codeM
Wiper edgeNo
