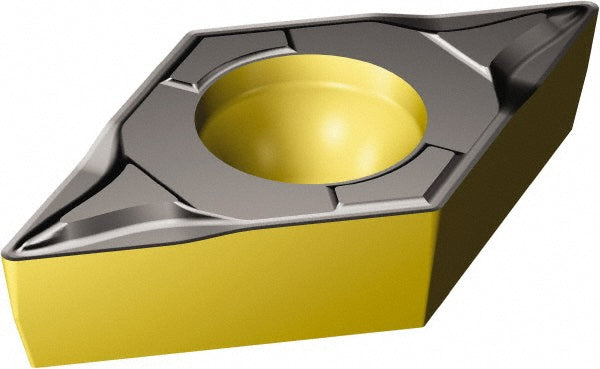

DCMT 11 T3 04-KM 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868256

Sandvik Coromant

DCMT 11 T3 04-KM 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868256

MFR# 6868256ISO/ANSI# DCMT11T304Series CoroTurn 107

$17.77List $22.80 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
Grade3225
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 6868256 is a DCMT 11 T3 04-KM 3225 carbide indexable insert, grade 3225, TiCN coated. Suited for cast iron.

Specifications

Ansi insert codeDCMT32.51
Ansi size code32.51
Chip breakerKM
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleRounded
Grade characteristicsCast Iron (K) - High Wear-Resistance to High Toughness
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32.51
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT 11 T3 04-KM 3225
Iso insert codeDCMT11T304
Iso size code11T304
Manufacturer grade3225
Maximum depth of cut (mm)11.23
Number of cutting edges2
Primary workpiece materialCast Iron
Relief angle7
Side clearancePositive
Tolerance codeM
Wiper edgeNo
