Sandvik Coromant

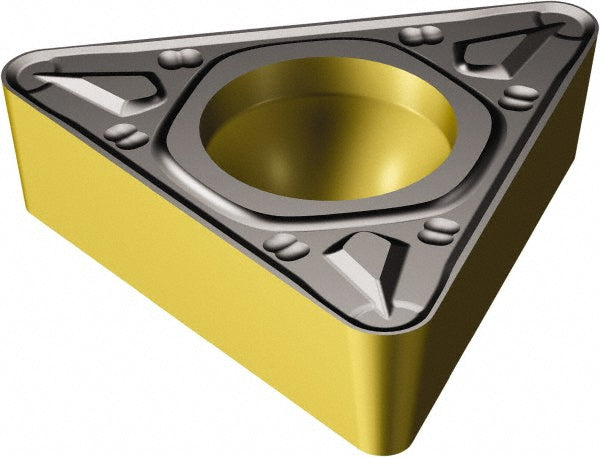

TCMT 22 04 08-KR 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868302
MFR# 6868302ISO/ANSI# TCMT 22 04 08-KR 3225Series CoroTurn 107
$28.33List $36.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
Grade3225
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 6868302 is a TCMT 22 04 08-KR 3225 carbide indexable insert, grade 3225, TiCN coated. Suited for cast iron.
Specifications
Chip breakerKR
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleRounded
Hole diameter0.2165
Included angle60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTCMT
Insert thickness in3/16
Iso codeTCMT 22 04 08-KR 3225
Manufacturer grade3225
Maximum depth of cut (mm)21.20
Number of cutting edges3
Primary workpiece materialCast Iron
Relief angle7
Tolerance codeM
Wiper edgeNo
