Sandvik Coromant

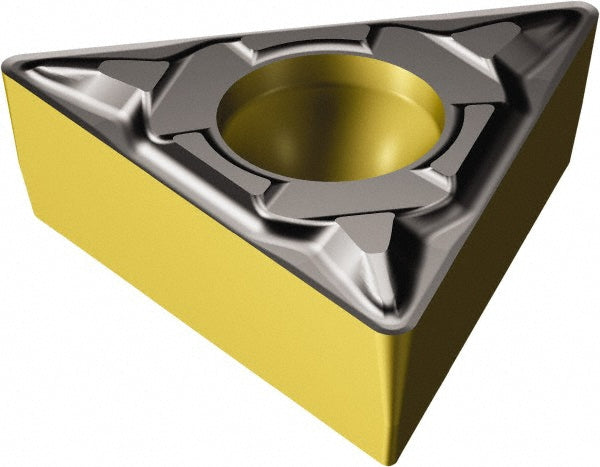

TCMT 09 02 02-KF 3210 Carbide Insert, Grade 3210, TiCN - Sandvik Coromant 6868346
MFR# 6868346ISO/ANSI# TCMT090202Series CoroTurn 107
$15.03List $19.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeT - Triangle
Grade3210
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 6868346 is a TCMT 09 02 02-KF 3210 carbide indexable insert, grade 3210, TiCN coated.
Specifications
Ansi insert codeTCMT1.81.50
Ansi size code1.81.50
Chip breakerKF
Chip breaker operationFinishing
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0079
Cutting edge styleRounded
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.0984
Included angle60
Inscribed circle0.2188
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeT - Triangle
Insert size code1.81.50
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT 09 02 02-KF 3210
Iso insert codeTCMT090202
Iso size code090202
Manufacturer grade3210
Maximum depth of cut (mm)9.17
Relief angle7
Side clearancePositive
Tolerance codeM
