Sandvik Coromant

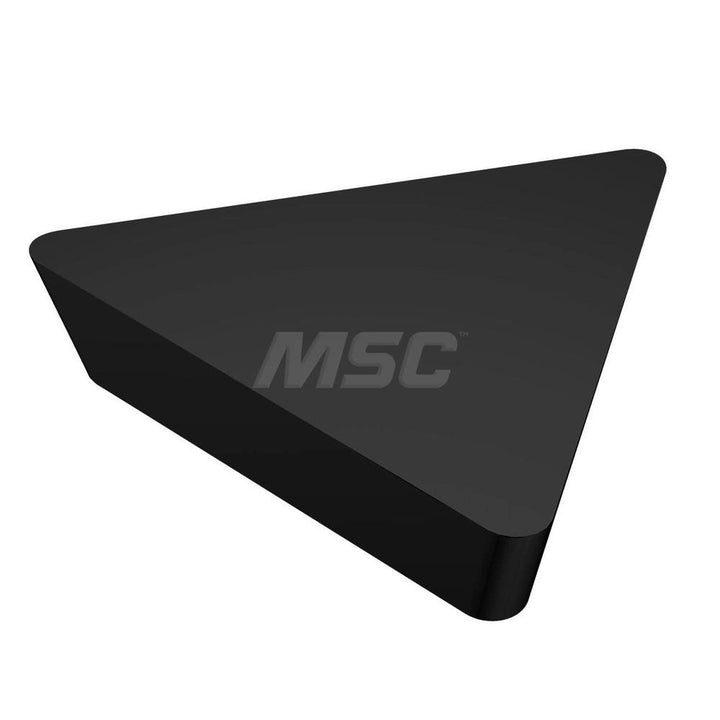

TPUN 11 03 04 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868402
MFR# 6868402ISO/ANSI# TPUN 11 03 04 3225Series T-Max
$10.70List $13.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade3225
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 6868402 is a TPUN 11 03 04 3225 carbide indexable insert, grade 3225, TiCN coated.
Specifications
Chip breakerN
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleRounded
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert shapeTriangle
Insert size code221
Insert styleTPU
Insert thickness in1/8
Iso codeTPUN 11 03 04 3225
Manufacturer grade3225
Maximum depth of cut (mm)10.60
Relief angle11
Tolerance codeU
