Sandvik Coromant

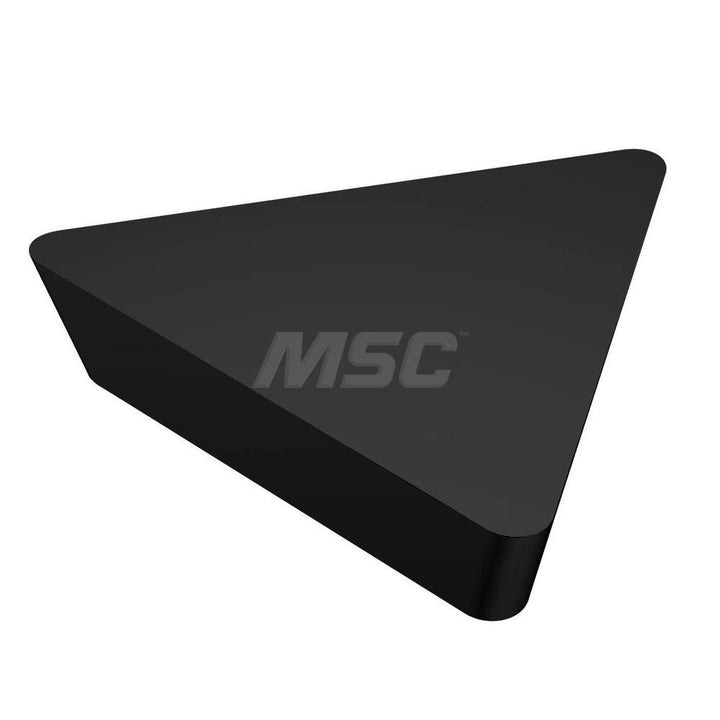

TPUN 16 03 04 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868404
MFR# 6868404ISO/ANSI# TPU160304Series T-Max
$15.40List $19.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
Grade3225
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 6868404 is a TPUN 16 03 04 3225 carbide indexable insert, grade 3225, TiCN coated.
Specifications
Ansi insert codeTPU321
Ansi size code321
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleRounded
Grade characteristicsCast Iron (K) - High Wear-Resistance to High Toughness
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert shapeT - Triangle
Insert size code321
Insert styleTPU
Insert thickness in1/8
Iso codeTPUN 16 03 04 3225
Iso insert codeTPU160304
Iso size code160304
Manufacturer grade3225
Maximum depth of cut (mm)16.10
Relief angle11
Side clearancePositive
Tolerance codeU
