Sandvik Coromant

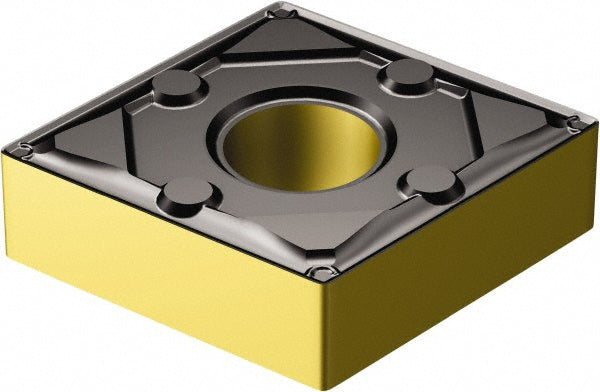

CNMG 12 04 08-WF 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868426
MFR# 6868426ISO/ANSI# CNMG120408Series T-Max P
$22.08List $28.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
Grade3225
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 6868426 is a CNMG 12 04 08-WF 3225 carbide indexable insert, grade 3225, TiCN coated.
Specifications
Ansi insert codeCNMG432
Ansi size code432
Chip breakerWF
Chip breaker operationWiper - Finishing
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleRounded
Grade characteristicsCast Iron (K) - High Wear-Resistance to High Toughness
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 08-WF 3225
Iso insert codeCNMG120408
Iso size code120408
Lead angle95
Manufacturer grade3225
Maximum depth of cut (mm)12.10
Relief angle0
Side clearanceNegative
Tolerance codeM
