Sandvik Coromant

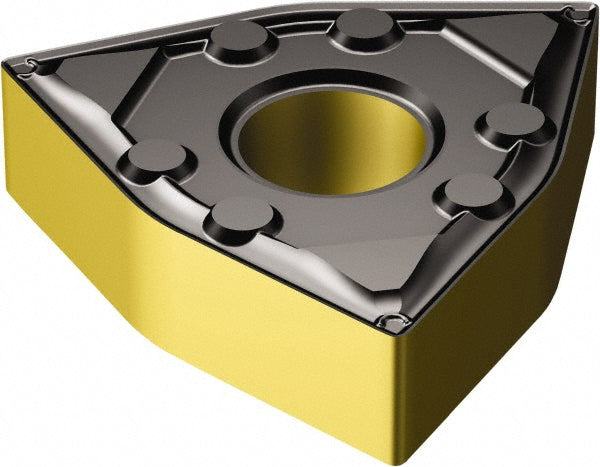

WNMG 06 04 04-WF 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868436
MFR# 6868436ISO/ANSI# WNMG060404Series T-Max P
$19.46List $24.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeW - Trigon 80-Deg
Grade3225
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 6868436 is a WNMG 06 04 04-WF 3225 carbide indexable insert, grade 3225, TiCN coated.
Specifications
Ansi insert codeWNMG331
Ansi size code331
Chip breakerWF
Chip breaker operationWiper - Finishing
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleRounded
Grade characteristicsCast Iron (K) - High Wear-Resistance to High Toughness
Hole diameter0.1500
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code331
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 06 04 04-WF 3225
Iso insert codeWNMG060404
Iso size code060404
Lead angle95
Manufacturer grade3225
Maximum depth of cut (mm)6.12
Relief angle0
Side clearanceNegative
Tolerance codeM
