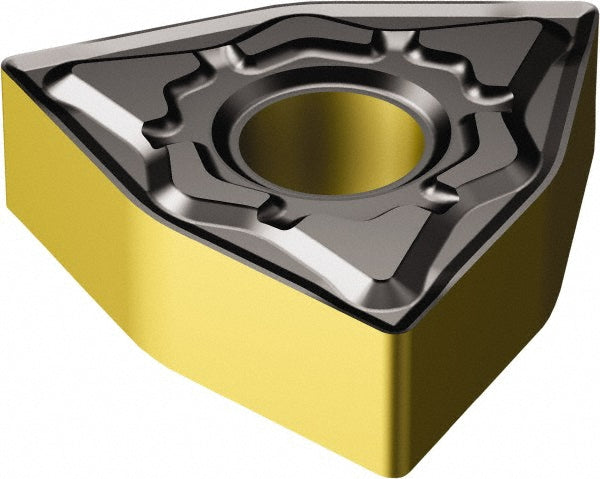

WNMG 08 04 04-KF 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868497

Sandvik Coromant

WNMG 08 04 04-KF 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868497

MFR# 6868497ISO/ANSI# WNMG080404Series T-Max P

$21.18List $27.16 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
Grade3225
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 6868497 is a WNMG 08 04 04-KF 3225 carbide indexable insert, grade 3225, TiCN coated. Suited for cast iron.

Specifications

Ansi insert codeWNMG431
Ansi size code431
Chip breakerKF
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleRounded
Grade characteristicsCast Iron (K) - High Wear-Resistance to High Toughness
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code0804
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 04-KF 3225
Iso insert codeWNMG080404
Iso size code080404
Manufacturer grade3225
Maximum depth of cut (mm)8.29
Number of cutting edges6
Primary workpiece materialCast Iron
Relief angle0
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
