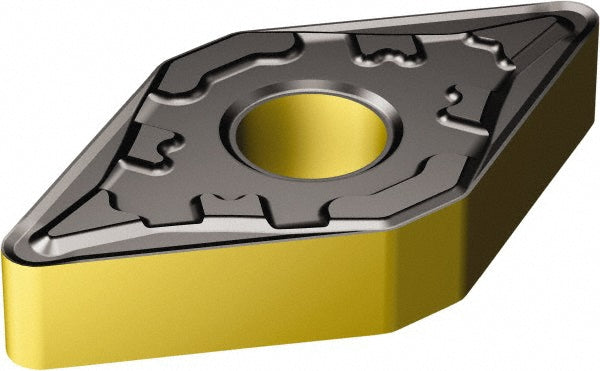

DNMG 11 04 08-KF 3210 Carbide Insert, Grade 3210, TiCN - Sandvik Coromant 6868504
MFR# 6868504ISO/ANSI# DNMG 11 04 08-KF 3210Series T-Max P
$20.34List $26.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade3210
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 6868504 is a DNMG 11 04 08-KF 3210 carbide indexable insert, grade 3210, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleRounded
Hole diameter0.1500
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 11 04 08-KF 3210
Manufacturer grade3210
Maximum depth of cut (mm)10.83
Relief angle0
Tolerance codeM
