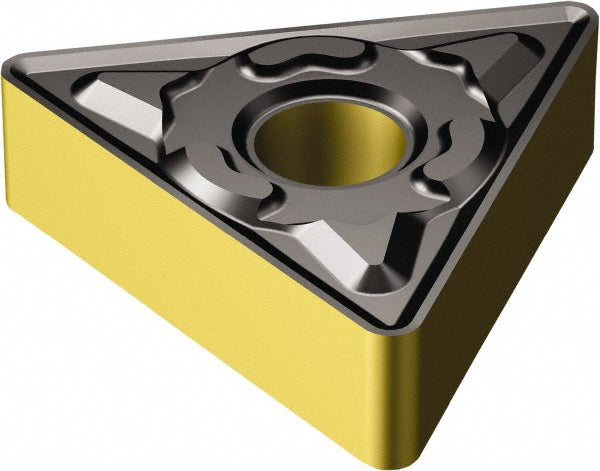

TNMG 16 04 08-KM 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868538
MFR# 6868538ISO/ANSI# TNMG 16 04 08-KM 3225Series T-Max P
$15.67List $20.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade3225
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 6868538 is a TNMG 16 04 08-KM 3225 carbide indexable insert, grade 3225, TiCN coated. Suited for cast iron.
Specifications
Chip breakerKM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleRounded
Hole diameter0.1500
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeTriangle
Insert size code332
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 16 04 08-KM 3225
Manufacturer grade3225
Maximum depth of cut (mm)15.70
Number of cutting edges6
Primary workpiece materialCast Iron
Relief angle0
Tolerance codeM
Wiper edgeNo
