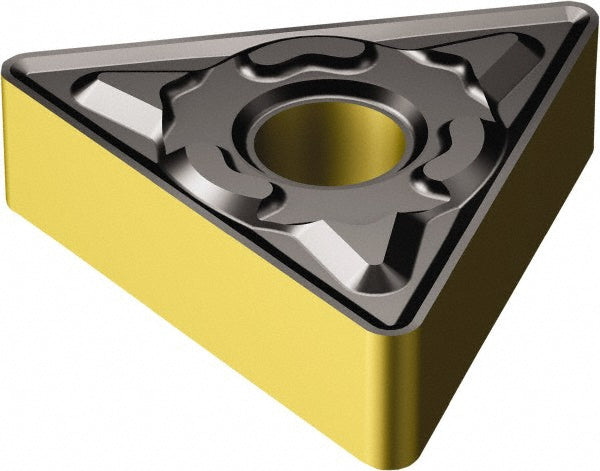

TNMG 22 04 08-KM 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868540

Sandvik Coromant

TNMG 22 04 08-KM 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868540

MFR# 6868540ISO/ANSI# TNMG220408Series T-Max P

$23.49List $30.13 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeT - Triangle
Grade3225
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 6868540 is a TNMG 22 04 08-KM 3225 carbide indexable insert, grade 3225, TiCN coated. Suited for cast iron.

Specifications

Ansi insert codeTNMG432
Ansi size code432
Chip breakerKM
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleRounded
Grade characteristicsCast Iron (K) - High Wear-Resistance to High Toughness
Hole diameter0.2030
Included angle60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeT - Triangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 22 04 08-KM 3225
Iso insert codeTNMG220408
Iso size code220408
Manufacturer grade3225
Maximum depth of cut (mm)21.20
Number of cutting edges6
Primary workpiece materialCast Iron
Relief angle0
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
