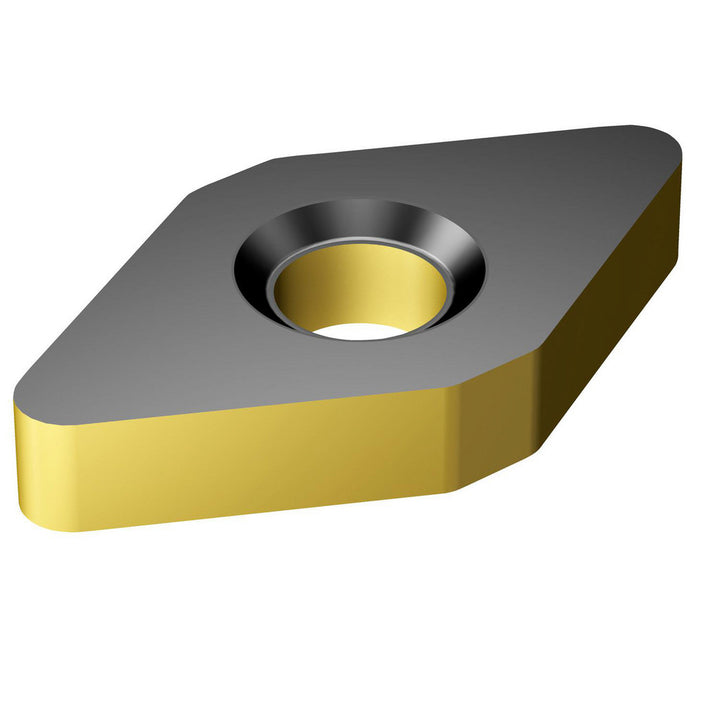

DNMA 15 04 08-KR 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868588

Sandvik Coromant

DNMA 15 04 08-KR 3225 Carbide Insert, Grade 3225, TiCN - Sandvik Coromant 6868588

MFR# 6868588ISO/ANSI# DNMA150408Series T-Max P

$24.24List $31.08 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
Grade3225
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 6868588 is a DNMA 15 04 08-KR 3225 carbide indexable insert, grade 3225, TiCN coated. Suited for cast iron.

Specifications

Ansi insert codeDNMA432
Ansi size code432
Chip breakerKR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleRounded
Grade characteristicsCast Iron (K) - High Wear-Resistance to High Toughness
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNMA
Insert thickness in3/16
Iso codeDNMA 15 04 08-KR 3225
Iso insert codeDNMA150408
Iso size code150408
Manufacturer grade3225
Maximum depth of cut (mm)14.70
Number of cutting edges4
Primary workpiece materialCast Iron
Relief angle0
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
