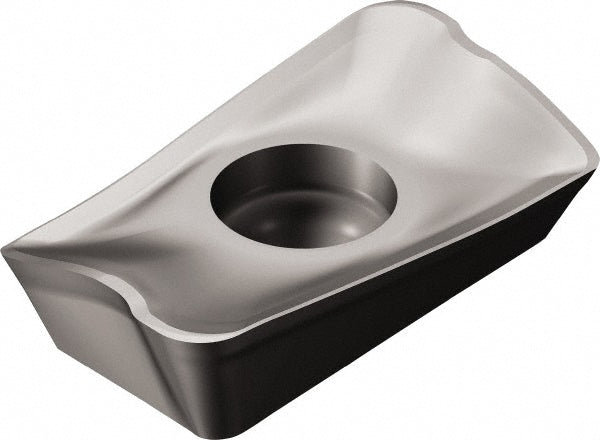

R390-11 T3 10M-PH 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 6906944

Sandvik Coromant

R390-11 T3 10M-PH 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 6906944

MFR# 6906944ISO/ANSI# R390-11 T3 10M-PH 1130Cat# R390-11 T3 10M-PH 1130Series R390

$24.14List $30.95 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Sandvik Coromant 6906944 is a R390-11 T3 10M-PH 1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeR390-11 T3 10M-PH 1130
Chip breakerPH
Coating finishAlTiCrN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityM-32; R390
Cutting edge styleCorner Rounded
Hole diameter0.1102
Included angle degree90
Inscribed circle0.2677
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code11T310
Insert styleR390
Iso codeR390-11 T3 10M-PH 1130
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberR390-11 T3 10M-PH 1130
Manufacturer grade1130
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeP30; M15; N15
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle11
Relief angle21.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1413
Thickness range0.1250 to 0.1500
Width0.2677
