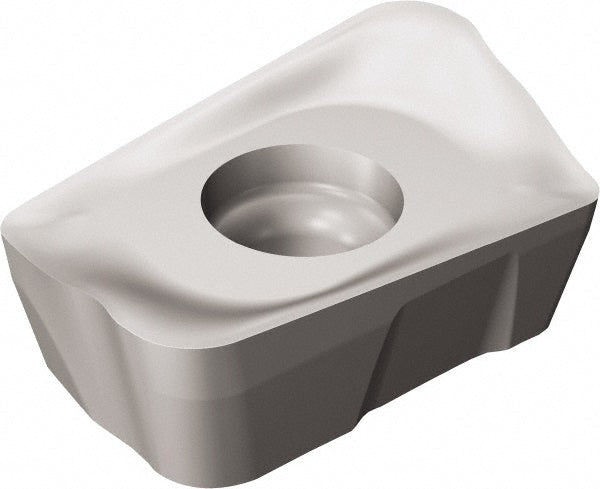

R390-18 06 08M-PM 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 6971863

Sandvik Coromant

R390-18 06 08M-PM 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 6971863

MFR# 6971863ISO/ANSI# R390-18 06 08M-PM 1130Cat# R390-18 06 08M-PM 1130Series R390

$33.98List $43.58 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Sandvik Coromant 6971863 is a R390-18 06 08M-PM 1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeR390-18 06 08M-PM 1130
Chip breakerPM
Coating finishAlTiCrN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityM-40; R390
Cutting edge styleCorner Rounded
Hole diameter0.1634
Included angle degree90
Inscribed circle0.4331
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code180608
Insert styleR390
Iso codeR390-18 06 08M-PM 1130
Length0.6063
Length range0.6000 to 0.6500
Manufacturers catalog numberR390-18 06 08M-PM 1130
Manufacturer grade1130
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeP30; M15; N15
Maximum depth of cut0.6299
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle5
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2492
Thickness range0.2350 to 0.2500
Width0.4331
