Sandvik Coromant

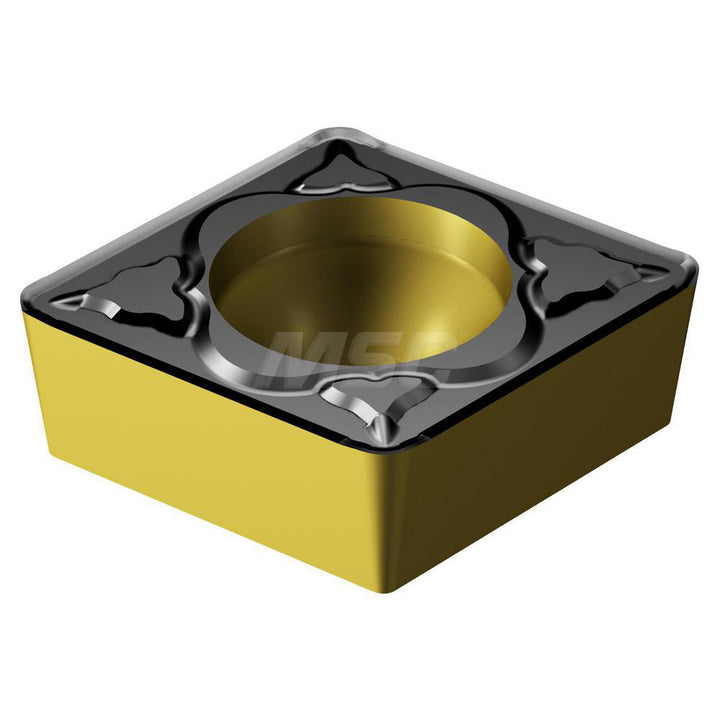

CCMT 06 02 08-PM 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080694
MFR# 7080694ISO/ANSI# CCMT060208Series CoroTurn 107
$14.86List $19.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
Grade4335
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7080694 is a CCMT 06 02 08-PM 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Ansi insert codeCCMT21.52
Ansi size code21.52
Chip breakerPM
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.52
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT 06 02 08-PM 4335
Iso insert codeCCMT060208
Iso size code060208
Manufacturer grade4335
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Side clearancePositive
Tolerance codeM
Wiper edgeNo
