Sandvik Coromant

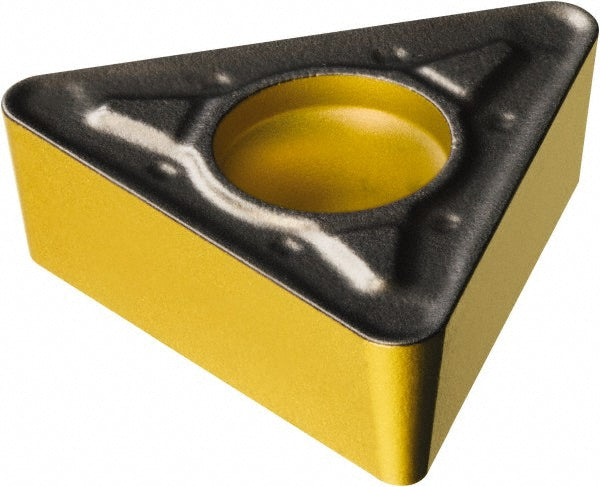

TCMT 22 04 08-PR 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080737
MFR# 7080737ISO/ANSI# TCMT 22 04 08-PR 4335Series CoroTurn 107
$27.21List $34.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
Grade4335
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7080737 is a TCMT 22 04 08-PR 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Chip breakerPR
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2165
Included angle60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTCMT
Insert thickness in3/16
Iso codeTCMT 22 04 08-PR 4335
Manufacturer grade4335
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Tolerance codeM
Wiper edgeNo
