Sandvik Coromant

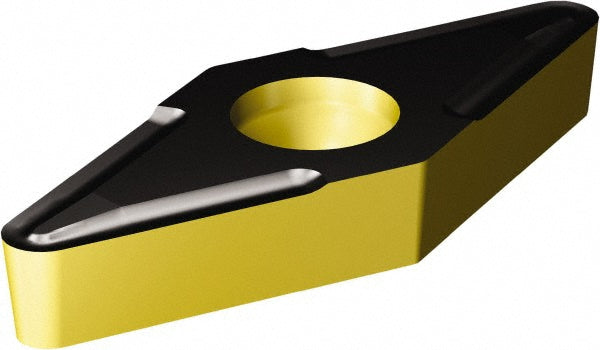

VBMT 11 02 02-UF 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080745
MFR# 7080745ISO/ANSI# VBMT110202Series CoroTurn 107
$25.27List $32.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
Grade4335
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7080745 is a VBMT 11 02 02-UF 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Ansi insert codeVBMT21.50
Ansi size code21.50
Chip breakerUF
Chip breaker operationFinishing
Clearance codeB
Coating finishTiCN
Coating processCVD
Corner radius0.0079
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1102
Included angle35
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code21.5
Insert styleVBMT
Insert thickness in3/32
Iso codeVBMT 11 02 02-UF 4335
Iso insert codeVBMT110202
Iso size code110202
Manufacturer grade4335
Number of cutting edges2
Primary workpiece materialSteel
Relief angle5
Side clearancePositive
Tolerance codeM
Wiper edgeNo
