Sandvik Coromant

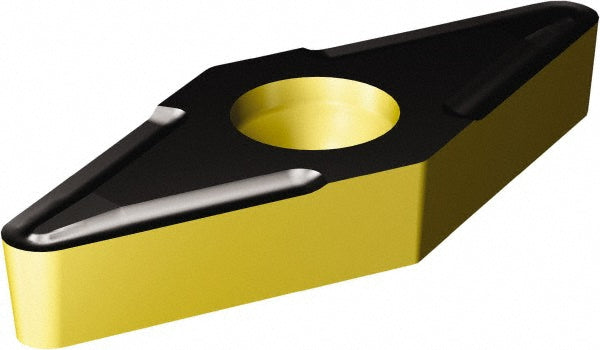

VBMT 11 02 04-UF 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080746
MFR# 7080746ISO/ANSI# VBMT 11 02 04-UF 4335Series CoroTurn 107
$25.09List $32.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade4335
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7080746 is a VBMT 11 02 04-UF 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Chip breakerUF
Clearance codeB
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1102
Included angle35
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleVBMT
Insert thickness in3/32
Iso codeVBMT 11 02 04-UF 4335
Manufacturer grade4335
Number of cutting edges2
Primary workpiece materialSteel
Relief angle5
Tolerance codeM
Wiper edgeNo
