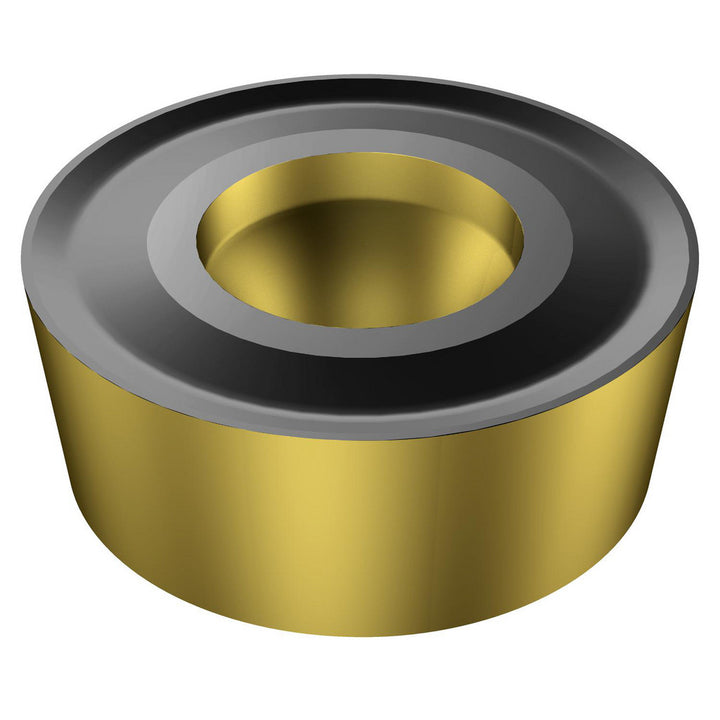

RCMT 12 04 00 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080776
MFR# 7080776ISO/ANSI# RCMT 12 04 00 4335Series CoroTurn 107
$17.62List $22.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRound
Grade4335
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7080776 is a RCMT 12 04 00 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Chip breaker00
Clearance codeC
Coating finishTiCN
Coating processCVD
Hole diameter0.1732
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeRound
Insert size code43
Insert styleRCMT
Insert thickness in3/16
Iso codeRCMT 12 04 00 4335
Manufacturer grade4335
Number of cutting edges4
Primary workpiece materialSteel
Relief angle7
Tolerance codeM
Wiper edgeNo
