Sandvik Coromant

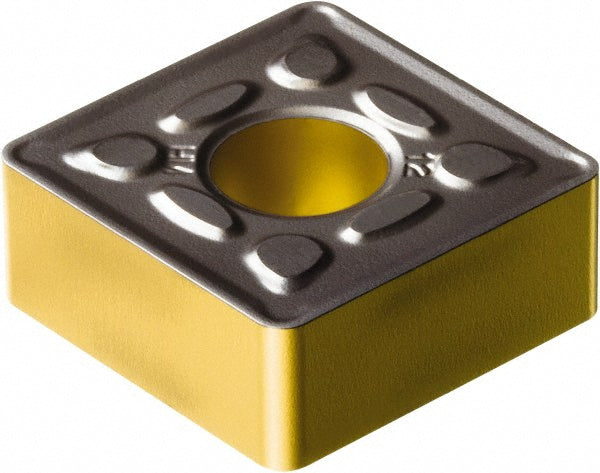

SNMG 15 06 12-HM 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080782
MFR# 7080782ISO/ANSI# SNMG 15 06 12-HM 4335Series T-Max P
$29.36List $37.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeSquare
Grade4335
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7080782 is a SNMG 15 06 12-HM 4335 carbide indexable insert, grade 4335, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Included angle90
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeSquare
Insert size code543
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG 15 06 12-HM 4335
Manufacturer grade4335
Relief angle0
Tolerance codeM
