Sandvik Coromant

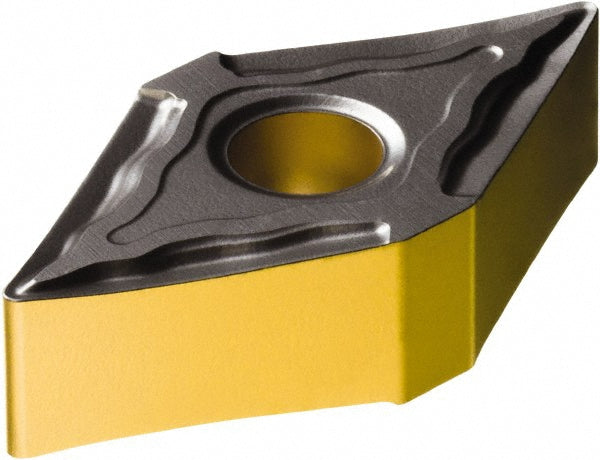

DNMG 15 04 08-MF 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080789
MFR# 7080789ISO/ANSI# DNMG 15 04 08-MF 4335Series T-Max P
$25.27List $32.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade4335
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7080789 is a DNMG 15 04 08-MF 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Chip breakerMF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 15 04 08-MF 4335
Manufacturer grade4335
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Tolerance codeM
Wiper edgeNo
