Sandvik Coromant

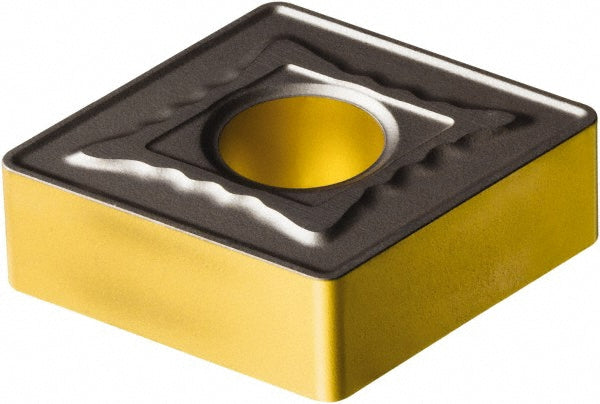

CNMG 19 06 12-MR 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080801
MFR# 7080801ISO/ANSI# CNMG 19 06 12-MR 4335Series T-Max P
$41.01List $52.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
Grade4335
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7080801 is a CNMG 19 06 12-MR 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Chip breakerMR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Hole diameter0.3120
Included angle80
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeDiamond
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 19 06 12-MR 4335
Manufacturer grade4335
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Tolerance codeM
Wiper edgeNo
