Sandvik Coromant

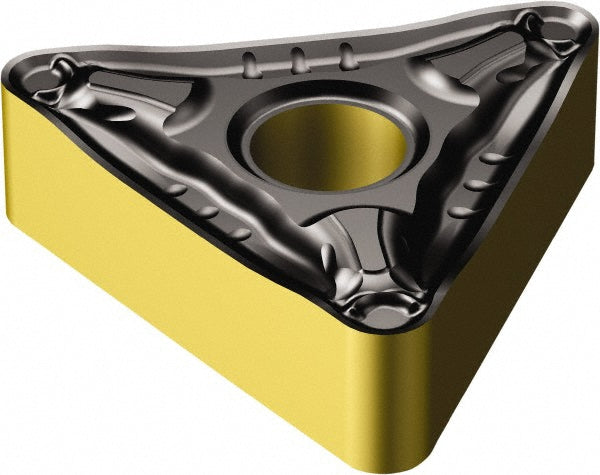

TNMG 22 04 04-PM 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080848
MFR# 7080848ISO/ANSI# TNMG220404Series T-Max P
$22.34List $28.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeT - Triangle
Grade4335
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7080848 is a TNMG 22 04 04-PM 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Ansi insert codeTNMG431
Ansi size code431
Chip breakerPM
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2030
Included angle60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeT - Triangle
Insert size code431
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 22 04 04-PM 4335
Iso insert codeTNMG220404
Iso size code220404
Manufacturer grade4335
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
