Sandvik Coromant

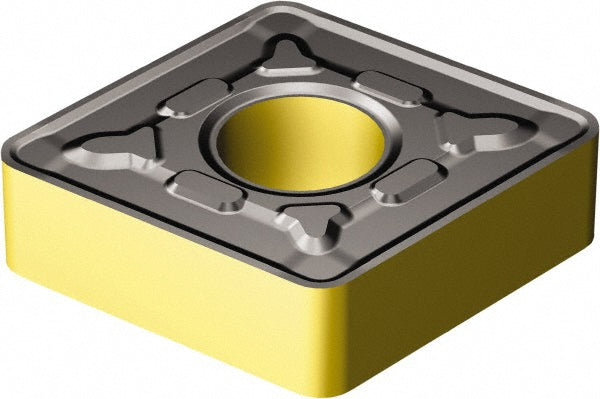

CNMG 16 06 08-PR 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080861
MFR# 7080861ISO/ANSI# CNMG 16 06 08-PR 4335Series T-Max P
$29.36List $37.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
Grade4335
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7080861 is a CNMG 16 06 08-PR 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Chip breakerPR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2500
Included angle80
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeDiamond
Insert size code542
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 16 06 08-PR 4335
Manufacturer grade4335
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Tolerance codeM
Wiper edgeNo
