Sandvik Coromant
DNMG 15 04 08-QM 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080905
MFR# 7080905ISO/ANSI# DNMG 15 04 08-QM 4335Series T-Max P
$23.39List $30.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade4335
MaterialCarbide
CoatingTiCN
Description

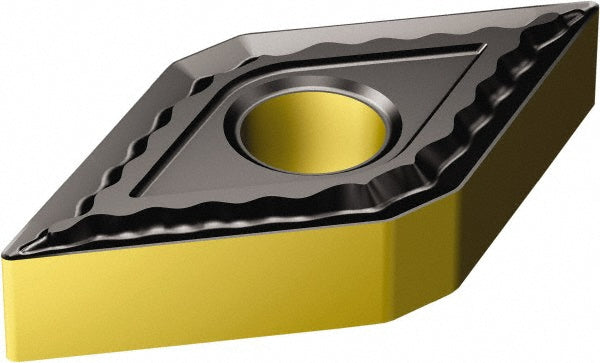

The Sandvik Coromant 7080905 is a DNMG 15 04 08-QM 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Chip breakerQM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 15 04 08-QM 4335
Manufacturer grade4335
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Tolerance codeM
Wiper edgeNo
