Sandvik Coromant

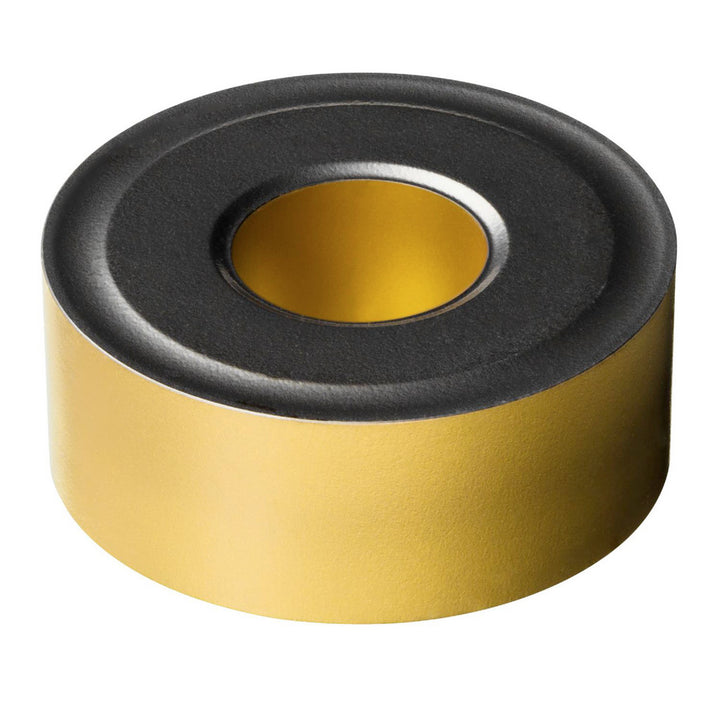

RNMG 15 06 00 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7080932
MFR# 7080932ISO/ANSI# RNMG150600Series T-Max P
$29.05List $37.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeR - Round
Grade4335
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7080932 is a RNMG 15 06 00 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Ansi insert codeRNMG54
Ansi size code54
Chip breaker00
Clearance codeN
Coating finishTiCN
Coating processCVD
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2500
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeR - Round
Insert size code54
Insert styleRNMG
Insert thickness in1/4
Iso codeRNMG 15 06 00 4335
Iso insert codeRNMG150600
Iso size code150600
Manufacturer grade4335
Number of cutting edges8
Primary workpiece materialSteel
Relief angle0
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
