Sandvik Coromant

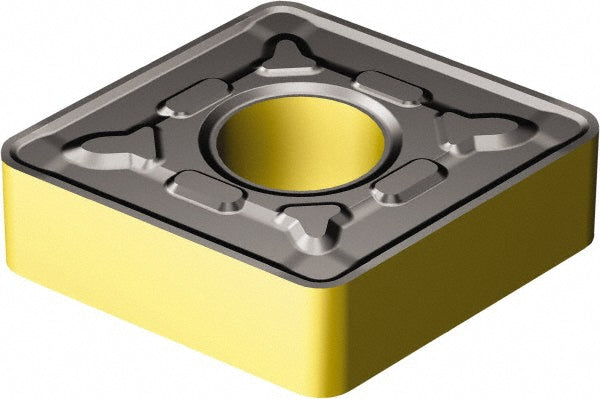

CNMG 25 09 24-PR 4335 Carbide Insert, Grade 4335, TiCN - Sandvik Coromant 7081113
MFR# 7081113ISO/ANSI# CNMG250924Series T-Max P
$99.36List $127.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1
ShapeC - Diamond (Rhombic) 80-Deg
Grade4335
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7081113 is a CNMG 25 09 24-PR 4335 carbide indexable insert, grade 4335, TiCN coated. Suited for steel.
Specifications
Ansi insert codeCNMG866
Ansi size code866
Chip breakerPR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/32
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.3590
Included angle80
Inscribed circle in1
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code866
Insert styleCNMG
Insert thickness in3/8
Iso codeCNMG 25 09 24-PR 4335
Iso insert codeCNMG250924
Iso size code250924
Manufacturer grade4335
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
