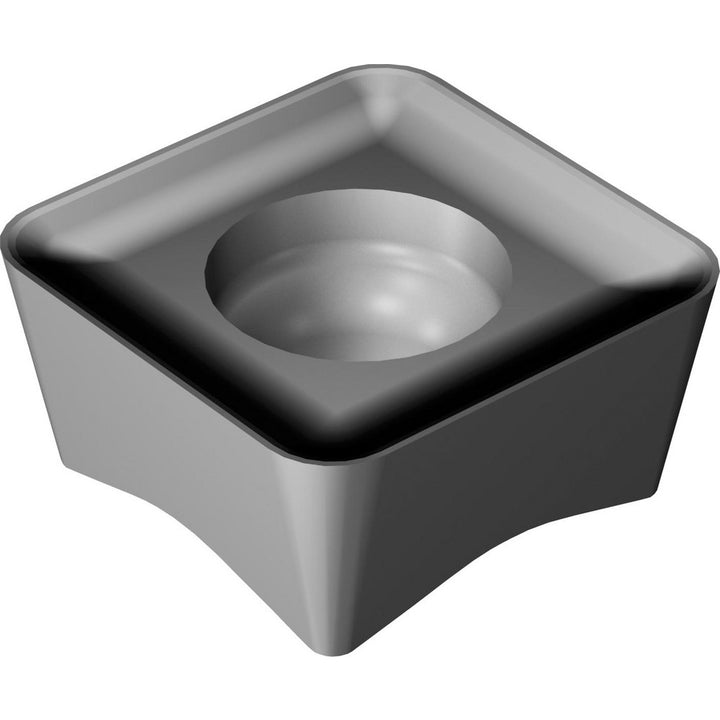

415N-05 02 06M-M30 S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 7082590
MFR# 7082590ISO/ANSI# 415N-05 02 06M-M30 S30TCat# 415N-05 02 06M-M30 S30TSeries 415
$18.20List $23.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeS30T
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 7082590 is a 415N-05 02 06M-M30 S30T solid carbide indexable insert, grade S30T, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi code415N-05 02 06M-M30 S30T
Chip breakerM30
Coating finishTiAlN
Coating processPVD
Corner radius0.0236
Cutter series compatibility415
Cutting edge styleCorner Rounded
Hole diameter0.0866
Included angle degree90
Inscribed circle0.1969
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size05
Insert size code050206
Insert style415
Iso code415N-05 02 06M-M30 S30T
Length0.1969
Length range0.0000 to 0.3200
Manufacturers catalog number415N-05 02 06M-M30 S30T
Manufacturer gradeS30T
Material applicationStainless Steel; Superalloys & Titanium
Material gradeM25; S25
Maximum depth of cut0.0335
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.0870
Thickness range0.0000 to 0.1000
Width0.1969
