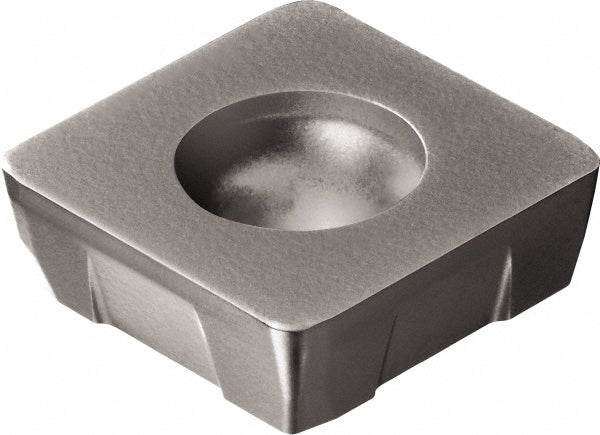

R210-09 04 12M-PM 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7100934

Sandvik Coromant

R210-09 04 12M-PM 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7100934

MFR# 7100934ISO/ANSI# R210-09 04 12M-PM 1130Cat# R210-09 04 12M-PM 1130Series R210

$19.57List $25.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Sandvik Coromant 7100934 is a R210-09 04 12M-PM 1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeR210-09 04 12M-PM 1130
Chip breakerPM
Coating finishAlTiCrN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityR210
Cutting edge styleCorner Rounded
Hole diameter0.1654
Included angle degree90
Inscribed circle0.3701
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code090412
Insert styleR210
Iso codeR210-09 04 12M-PM 1130
Length0.3701
Length range0.3200 to 0.4000
Manufacturers catalog numberR210-09 04 12M-PM 1130
Manufacturer grade1130
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeP30; M15; N15
Maximum depth of cut0.0472
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1575
Thickness range0.1500 to 0.1750
Width0.3701
