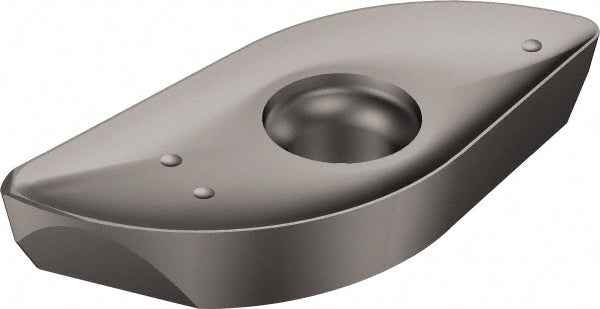

RA216-25 04 M-M 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7100963
MFR# 7100963ISO/ANSI# RA216-25 04 M-M 1130Cat# RA216-25 04 M-M 1130Series RA216
$59.02List $75.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeBall Nose
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN
Description
The Sandvik Coromant 7100963 is a RA216-25 04 M-M 1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Ansi codeRA216-25 04 M-M 1130
Chip breakerM
Coating finishAlTiCrN
Coating processPVD
Convex radius0.4921
Cutter series compatibilityRA216
Cutting edge styleRounded
Hole diameter0.1850
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size25
Insert size code2504
Insert styleRA216
Iso codeRA216-25 04 M-M 1130
Length0.8930
Length range0.7000 to 0.9000
Manufacturers catalog numberRA216-25 04 M-M 1130
Manufacturer grade1130
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeP30; M15; N15
Maximum depth of cut0.8930
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
