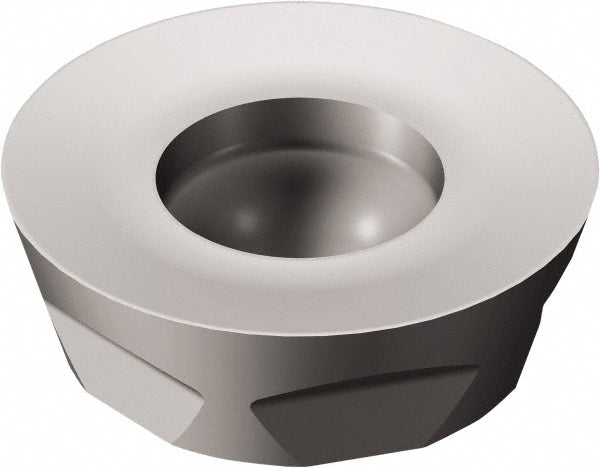

R300-1240M-PM 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7100984

Sandvik Coromant

R300-1240M-PM 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7100984

MFR# 7100984ISO/ANSI# R300-1240M-PM 1130Cat# R300-1240M-PM 1130Series R300

$16.77List $21.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Sandvik Coromant 7100984 is a R300-1240M-PM 1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeR300-1240M-PM 1130
Chip breakerPM
Coating finishAlTiCrN
Coating processPVD
Convex radius0.2362
Corner radius0.2362
Cutter series compatibilityR300
Cutting edge styleRounded
Hole diameter0.1614
Included angle degree360
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1240
Insert styleR300
Iso codeR300-1240M-PM 1130
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberR300-1240M-PM 1130
Manufacturer grade1130
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeP30; M15; N15
Maximum depth of cut0.1181
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle20
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.4724
