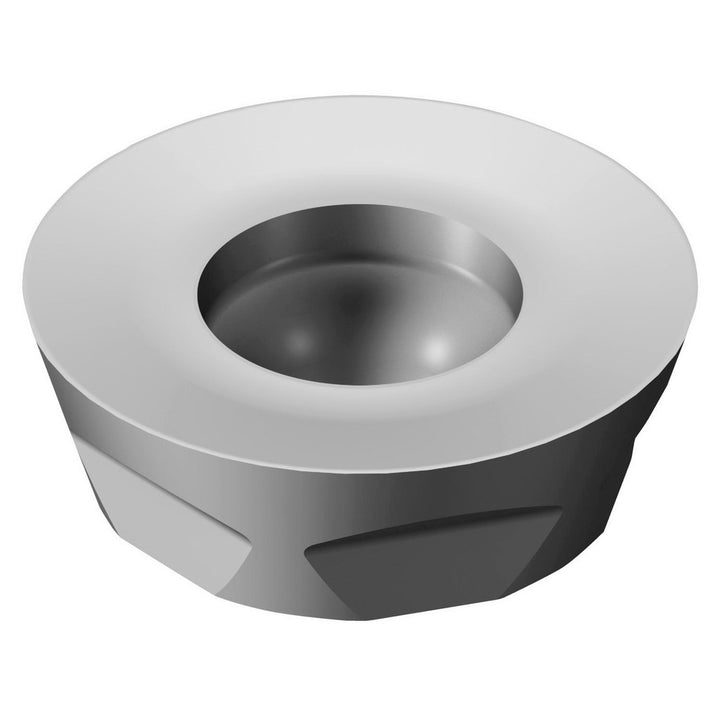

R300-1340M-PH 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7100987

Sandvik Coromant

R300-1340M-PH 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7100987

MFR# 7100987ISO/ANSI# R300-1340M-PH 1130Cat# R300-1340M-PH 1130Series R300

$15.13List $19.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeRound
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Sandvik Coromant 7100987 is a R300-1340M-PH 1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeR300-1340M-PH 1130
Chip breakerPH
Coating finishAlTiCrN
Coating processPVD
Convex radius0.2500
Corner radius0.2500
Cutter series compatibilityRA300
Cutting edge styleRounded
Hole diameter0.1614
Included angle degree360
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size13
Insert size code1340
Insert styleR300
Iso codeR300-1340M-PH 1130
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberR300-1340M-PH 1130
Manufacturer grade1130
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeP30; M15; N15
Maximum depth of cut0.1252
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in1/2
