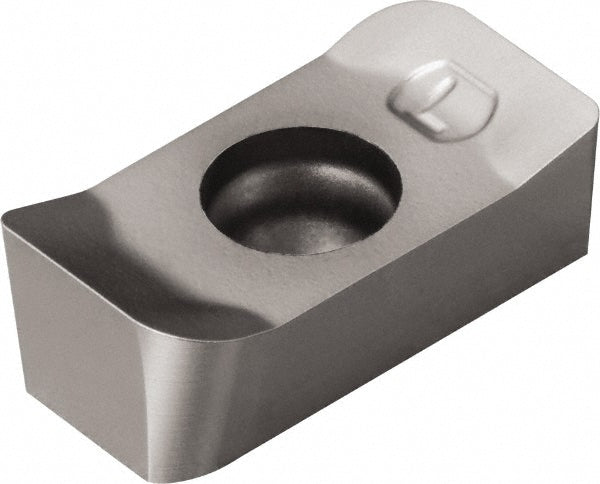

L331.1A-04 35 23H-WL1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7101011

MFR# 7101011ISO/ANSI# L331.1A-04 35 23H-WL1130Cat# L331.1A-04 35 23H-WL1130Series L331.1A

$28.30List $36.29 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Sandvik Coromant 7101011 is a L331.1A-04 35 23H-WL1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeL331.1A-04 35 23H-WL1130
Chip breakerWL
Coating finishAlTiCrN
Coating processPVD
Corner radius0.0902
Cutter series compatibilityR331.35
Cutting edge styleCorner Rounded
Hole diameter0.1024
Included angle degree90
Inscribed circle0.3740
Inscribed circle range0.3500 to 0.4000
Insert handLeft Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size04
Insert size code043523
Insert styleL331.1A
Iso codeL331.1A-04 35 23H-WL1130
Length0.1811
Length range0.0000 to 0.3200
Manufacturers catalog numberL331.1A-04 35 23H-WL1130
Manufacturer grade1130
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeP30; M15; N15
Maximum depth of cut0.1811
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1378
Thickness range0.1250 to 0.1500
Width0.3740
