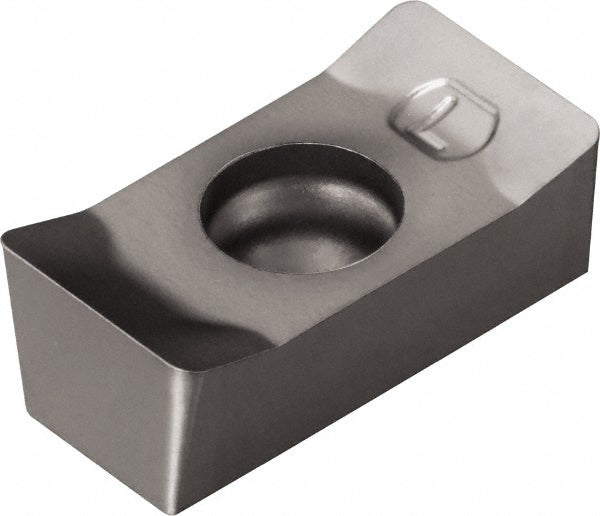

N331.1A-05 45 08H-WL1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7101031

Sandvik Coromant

N331.1A-05 45 08H-WL1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7101031

MFR# 7101031ISO/ANSI# N331.1A-05 45 08H-WL1130Cat# N331.1A-05 45 08H-WL1130Series N331.1A

$25.72List $32.99 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Sandvik Coromant 7101031 is a N331.1A-05 45 08H-WL1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeN331.1A-05 45 08H-WL1130
Chip breakerWL
Coating finishAlTiCrN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityN331.32
Cutting edge styleCorner Rounded
Hole diameter0.1142
Included angle degree90
Inscribed circle0.3740
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size05
Insert size code054508
Insert styleN331.1A
Iso codeN331.1A-05 45 08H-WL1130
Length0.2244
Length range0.0000 to 0.3200
Manufacturers catalog numberN331.1A-05 45 08H-WL1130
Manufacturer grade1130
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeP30; M15; N15
Maximum depth of cut0.2244
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1752
Thickness range0.1750 to 0.1850
Width0.3740
