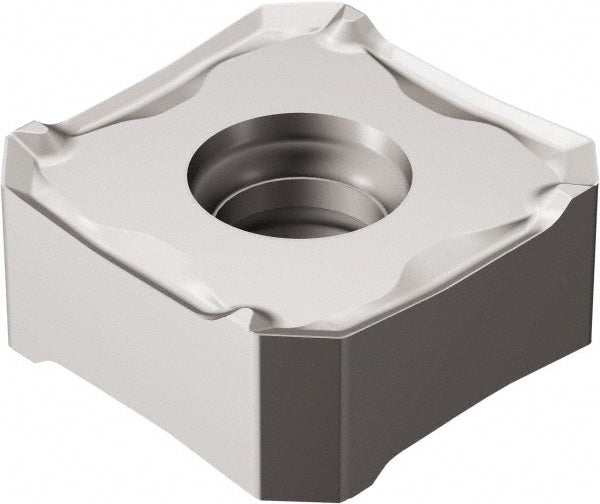

345R-1305E-PL 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7101108

Sandvik Coromant

345R-1305E-PL 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7101108

MFR# 7101108ISO/ANSI# 345R-1305E-PL 1130Cat# 345R-1305E-PL 1130Series 345

$37.85List $48.55 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Sandvik Coromant 7101108 is a 345R-1305E-PL 1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, hard material.

Specifications

Ansi code345R-1305E-PL 1130
Chip breakerPL
Coating finishAlTiCrN
Coating processPVD
Corner radius in1/32
Cutter series compatibility345
Cutting edge styleCorner Rounded
Hole diameter0.1890
Included angle degree90
Inscribed circle0.5118
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size13
Insert size code1305
Insert style345
Iso code345R-1305E-PL 1130
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog number345R-1305E-PL 1130
Manufacturer grade1130
Material applicationSteel; Hard Material
Material gradeP30; M15; N15
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Hard Material
RakeNegative
Rake angle30
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1988
Thickness range0.1850 to 0.2000
Width0.5118
