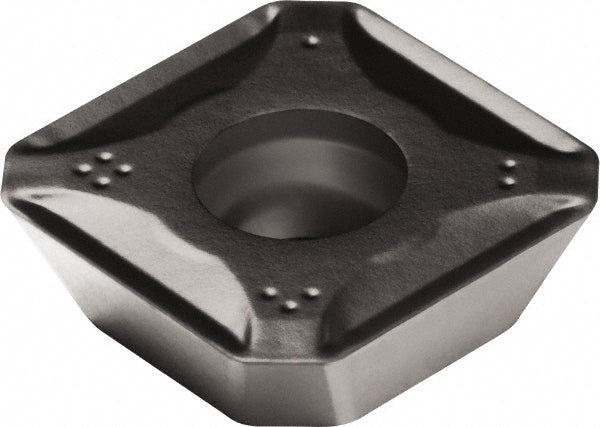

R245-12 T3 M-PL 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7101118

Sandvik Coromant

R245-12 T3 M-PL 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7101118

MFR# 7101118ISO/ANSI# R245-12 T3 M-PL 1130Cat# R245-12 T3 M-PL 1130Series R245

$21.94List $28.15 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Sandvik Coromant 7101118 is a R245-12 T3 M-PL 1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeR245-12 T3 M-PL 1130
Chip breakerPL
Coating finishAlTiCrN
Coating processPVD
Corner radius0.0591
Cutter series compatibilityR245
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.5276
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code12T3
Insert styleR245
Iso codeR245-12 T3 M-PL 1130
Length0.5276
Length range0.5000 to 0.6000
Manufacturers catalog numberR245-12 T3 M-PL 1130
Manufacturer grade1130
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeP30; M15; N15
Maximum depth of cut0.2559
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle15
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.5276
