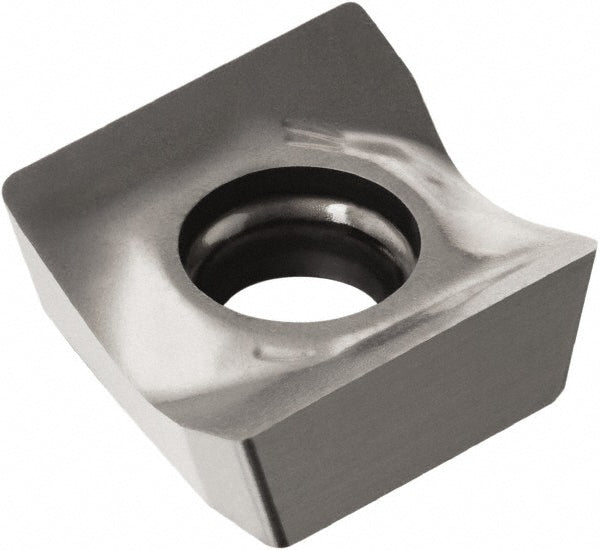

R590-110508H-PL 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7101123

Sandvik Coromant

R590-110508H-PL 1130 Solid Carbide Insert, Grade 1130, AlTiCrN - Sandvik Coromant 7101123

MFR# 7101123ISO/ANSI# R590-110508H-PL 1130Cat# R590-110508H-PL 1130Series R590

$29.90List $38.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC29/64
ShapeParallelogram
Grade1130
MaterialSolid Carbide
CoatingAlTiCrN

Description

The Sandvik Coromant 7101123 is a R590-110508H-PL 1130 solid carbide indexable insert, grade 1130, AlTiCrN coated. Suited for steel, stainless steel, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeR590-110508H-PL 1130
Chip breakerPL
Coating finishAlTiCrN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR590
Cutting edge styleCorner Rounded
Hole diameter0.1811
Included angle degree90
Inscribed circle in29/64
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code110508
Insert styleR590
Iso codeR590-110508H-PL 1130
Length in29/64
Length range0.4500 to 0.5000
Manufacturers catalog numberR590-110508H-PL 1130
Manufacturer grade1130
Material applicationSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeP30; M15; N15
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle25
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1969
Thickness range0.1850 to 0.2000
Width in29/64
