Sandvik Coromant

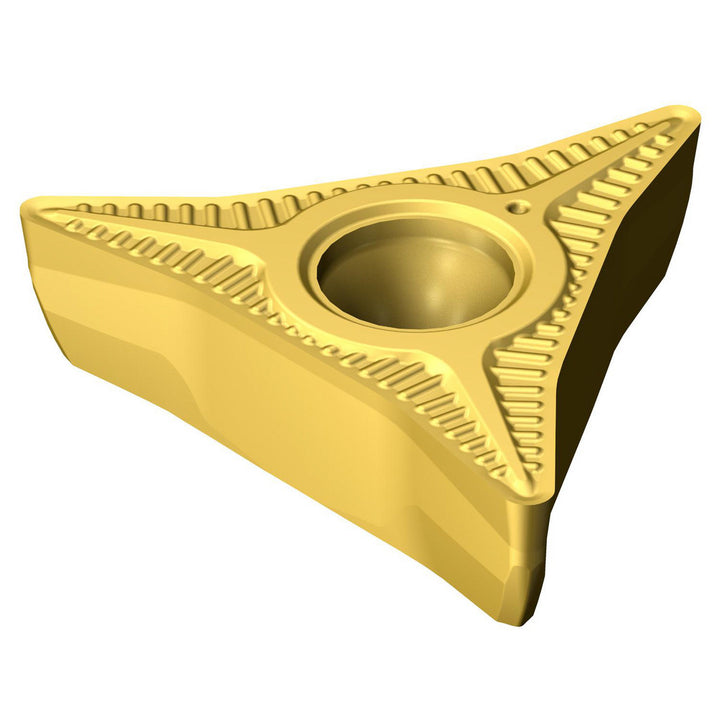

CP-A1108-L5 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 7182422
MFR# 7182422ISO/ANSI# CP-A1108-L5 2025Series CoroTurn Prime
$33.96List $37.10
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7182422 is a CP-A1108-L5 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerL5
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.1457
Included angle35
Inscribed circle0.4331
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code11
Insert styleCPA
Insert thickness0.2362
Iso codeCP-A1108-L5 2025
Manufacturer grade2025
Number of cutting edges3
Primary workpiece materialStainless Steel
Relief angle6
Wiper edgeNo
