Sandvik Coromant
CCMT 09 T3 08-UM 2220 Carbide Insert, Grade 2220, TiCN - Sandvik Coromant 7231313
MFR# 7231313ISO/ANSI# CCMT 09 T3 08-UM 2220Series CoroTurn 107
$16.54List $21.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade2220
MaterialCarbide
CoatingTiCN
Description

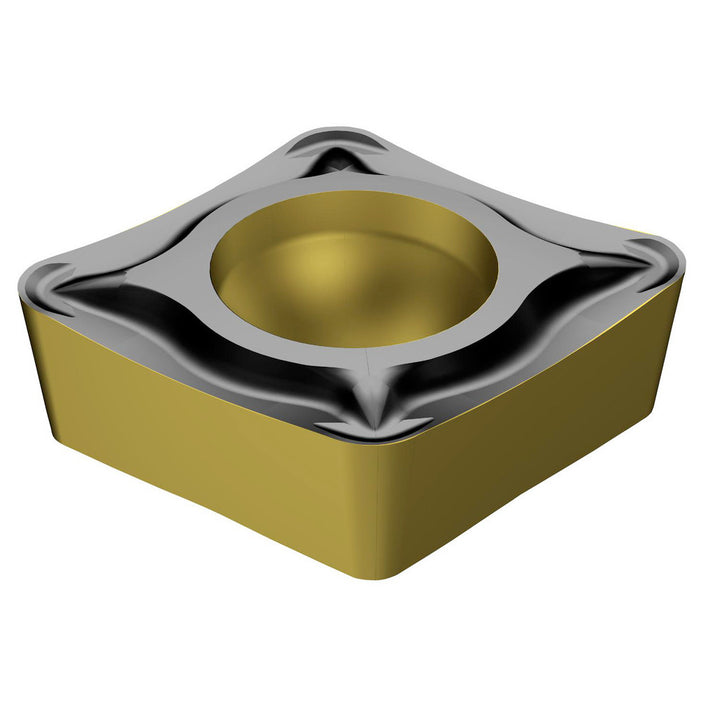

The Sandvik Coromant 7231313 is a CCMT 09 T3 08-UM 2220 carbide indexable insert, grade 2220, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 09 T3 08-UM 2220
Manufacturer grade2220
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeM
Wiper edgeNo
