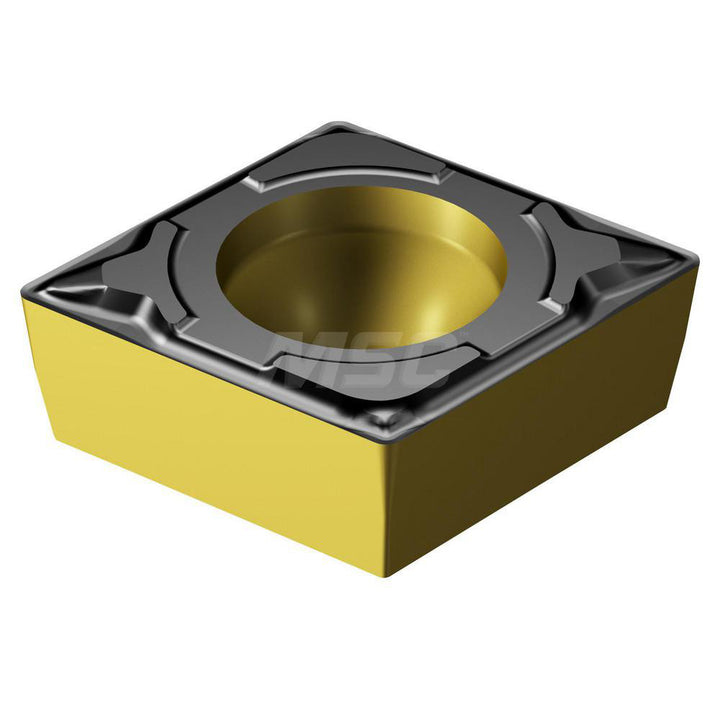

CCMT 12 04 04-MF 2220 Carbide Insert, Grade 2220, TiCN - Sandvik Coromant 7231315
MFR# 7231315ISO/ANSI# CCMT 12 04 04-MF 2220Series CoroTurn 107
$23.15List $29.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade2220
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 7231315 is a CCMT 12 04 04-MF 2220 carbide indexable insert, grade 2220, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.2165
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT 12 04 04-MF 2220
Manufacturer grade2220
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeM
Wiper edgeNo
