Sandvik Coromant
CNMG 12 04 08-MF 2220 Carbide Insert, Grade 2220, TiCN - Sandvik Coromant 7231325
MFR# 7231325ISO/ANSI# CNMG 12 04 08-MF 2220Series T-Max P
$17.82List $22.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade2220
MaterialCarbide
CoatingTiCN
Description

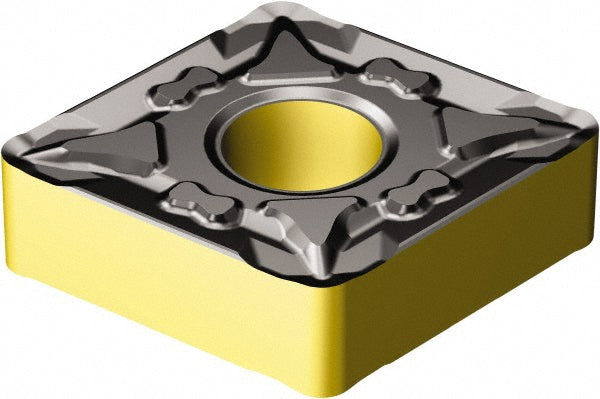

The Sandvik Coromant 7231325 is a CNMG 12 04 08-MF 2220 carbide indexable insert, grade 2220, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 08-MF 2220
Manufacturer grade2220
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Tolerance codeM
Wiper edgeNo
